The small animal anesthesia machine is an essential basic anesthesia equipment for animal experiments, suitable for almost all surgeries on various animals such as rats, mice, dogs, cats, pigs, monkeys, rodents, reptiles, and birds. It is equipped with our company's relevant gas source, induction box, anesthesia mask, and gas recovery device, providing a complete set of small animal gas anesthesia solutions. The operation is simple, safe, and reliable. In developed countries, the use of gas inhalation anesthesia is very common in animal experiments, such as in rodent, dog, monkey and other animal experiments.

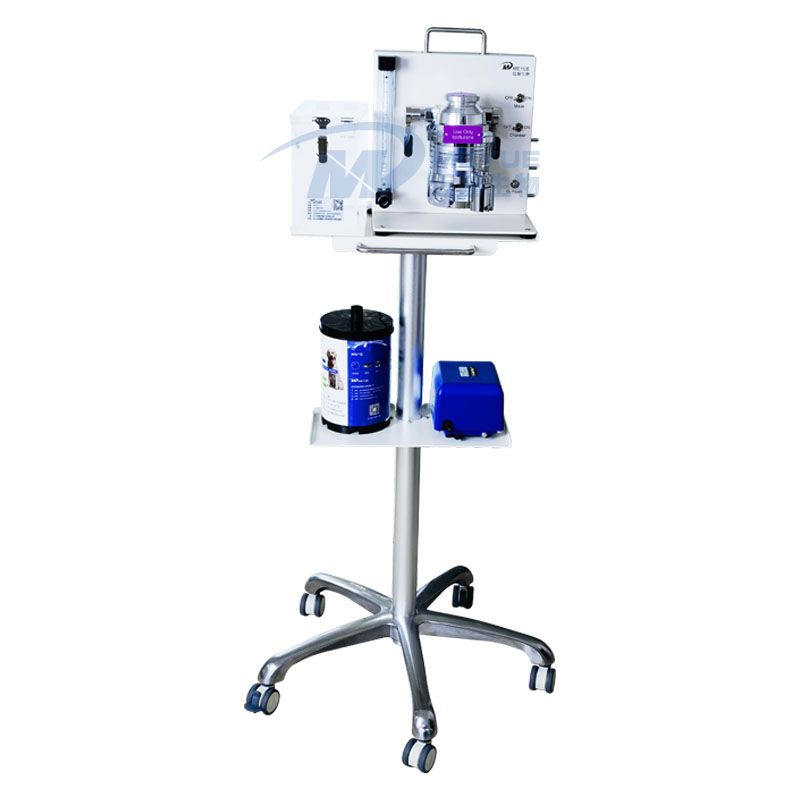

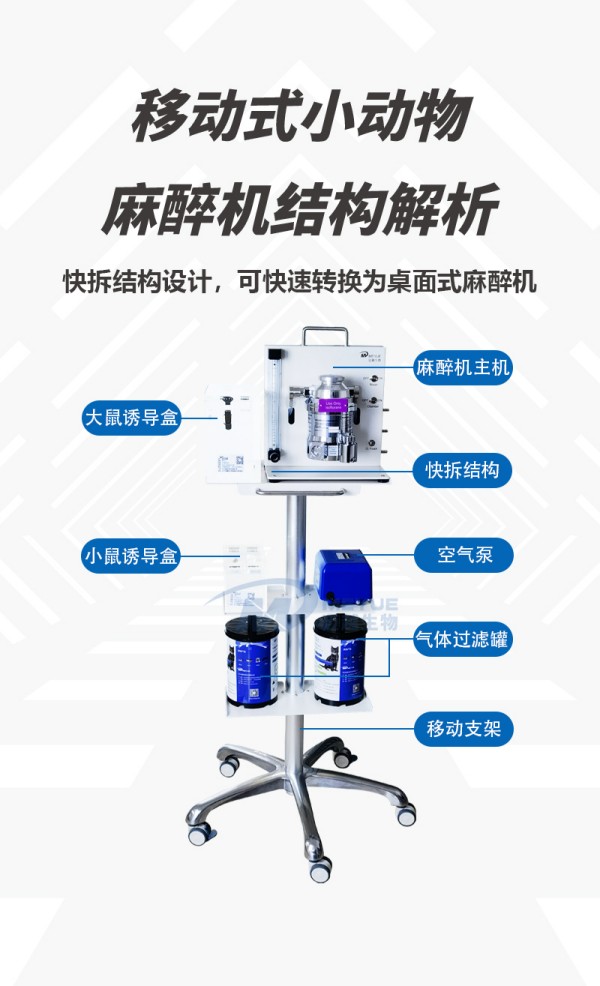

The Meyue BIO M5198 mobile/desktop dual-purpose small animal anesthesia machine, equipped with a mobile bracket on the basis of the mobile small animal anesthesia machine, enables the equipment to have both desktop and mobile forms, meeting customer needs. The anesthesia machine mainly consists of an anesthesia evaporation tank and a controller. It uses the air flow of an air pump as power to mix air with isoflurane in the anesthesia evaporation tank and enter the animal's body through a mask or ventilator. This anesthesia machine has the characteristics of high safety, precise control of anesthesia dosage, reversible anesthesia effect, and monitoring status, which can greatly improve work efficiency.

1. Adopting a single breathing tube without a recirculation breathing system to reduce dead space.
2. Accurate glass tube oxygen flow meter, precise and adjustable, suitable for low flow anesthesia of small animals.
3. Choose the classic TECH 3 anesthesia canister model isoflurane anesthesia volatilization canister, which has stable output, good sealing, and is safe and reliable.
4. Precise design ensures accurate output concentration, unaffected by changes in flow rate, temperature, flow rate, and pressure.
5. Accurate scale adjustment ensures the accuracy of output
6. Safety locking device to prevent accidental volatilization of anesthetics
7. Glass windows with a large field of view are convenient for observing the degree of drug use
8. A simple dispensing device is convenient for users
9. Adopting the classic TECH3 anesthesia canister technology, the minimum anesthesia volatilization concentration is adjusted to 0.15%
10. The output concentration is not affected by changes in flow rate, pressure, and temperature, and is accurate and reliable
11. Equipped with safety locking devices to prevent accidental leakage and misuse of anesthetics
12. Equipped with classic TECH3 anesthesia canister technology, the minimum anesthesia volatilization concentration is adjusted to 0.15% to meet different customer needs

1. Applicable animals: rats, mice, guinea pigs, rabbits, cats and other animals under 7kg
2. Vaporizer type: classic TECH3 anesthesia tank
3. Output concentration range: Isoflurane: 0-5%; Sevoflurane: 0-5%
4. Output accuracy: ±0.02 (0-1%); ±0.1 (1-5%)
5. Vaporizer capacity: >280ml
6. Number of experimental animals: one can be anesthetized at the same time, and multiple animals can be induced
7. Anesthesia machine use environment: ambient temperature 4℃-40℃ (40℉- 104℉), ambient humidity 20%-80%RH
8. Air source pressure: <0.2mpa
9. Flow meter selection: 0-1L/min (single animal); 0-4L/min (multiple animals)
10. Air supply method: air pump
11. Main unit size (HxWxD): 27.0x16.0x30.0cm (10.63x6.30x11.81in)
12. Main unit weight: 7.0kg (15.43lbs)
